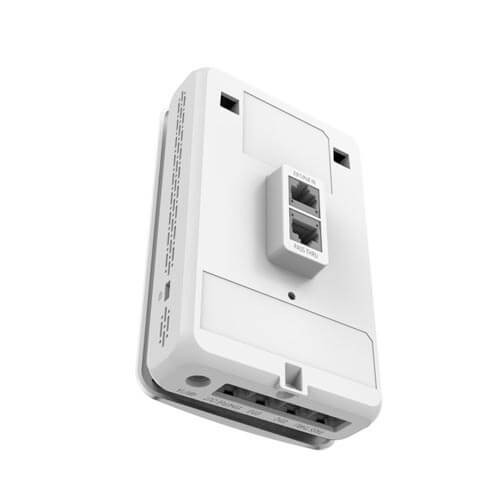

Cambium cnPilot™ e430W Indoor:
The cnPilot e430 Enterprise-class Indoor Wall Plate access point supporting 802.11ac Wave 2 standards-based beamforming, is perfect for hotels and resorts (Hospitality) and multi-dwelling units (MDUs).
Access Point Specifications | |
Operating RF Frequency | 2.4 GHz to 2.4835 GHz 5.15 GHz – 5.875 GHz |
SSID Security | WPA2 (802.11i) WPA2 Enterprise (802.1x/EAP) WPA PSK Open |
Max Phy Rate | 2.4 GHz radio: 400 Mbps 5 GHz radio: 867 Mbps |
BLE | Integrated BLE radio |
RJ45 Ports | Four IEEE Gigabit Ethernet auto-sensing Two pass-through shielded ports |
Antenna | Integrated dual-polarized, Omni 3.57 dBi (2.4 GHz), 4.96 dBi (5 GHz) |
Max EIRP | 2.4 GHz: 25.57 dBm 5 GHz: 25.96 dBm EIRP may be limited by individual country regulation |
Physical Environmental | 147mm x 94mm x 34mm 390 g Kensington lock slot Tri-color status LED 0C – + 45C ambient op temp -20C – + 70C storage temperature 95% RH non-condensing |
Power | PoE In: 802.3at compliant. PSE port enabled PoE In: 802.3af compliant. PSE port enabled Auxiliary 48VDC input power, 2.5mm Typical: 9.6w Max: 25.5w at max duty with a full load 802.3af compliant PSE port GE4 |
Certifications | WiFi Alliance 80211a/b/g/n/ac, Passpoint 2.0 FCC, ETSI, CE, EN 60601-1-2, IEC60950, UL2043 |
WLAN and Network Specifications | |
Controller modes | Controller-less standalone AutoPilot heterogeneous network Cloud-managed cnMaestro On-premises cnMaestro VM |
WLAN | 256 clients, 16 SSIDs WPA-TKIP, WPA2 AES, 802.1x, 802.11i 802.11w PMF, client isolation |
Captive Portal/ Guest Access | Hosted on cnMaestro Controller On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging |
Authentication | Hotspot 2.0/Passpoint 2.0 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to a local database or external RADIUS |
Accounting | RADIUS accounting, multiple AAA |
Scheduled W | On/off by a day, week, time of day |
Guest Access | Vouchers Rate Limit Splash page hosted on AP or cnMaestro Client isolation per SSID, per network |
Data Limit | Client rate limit per SSID |
Subscriber | WMM |
Fast Roaming | 802.11r, OKC, Enhanced roaming |
Mesh | Multi-hop, either band |
Channel Selection | autoTune: Manual, or automatic Selectable off-channel scan |
Auto TX Power | Autor: controller-less transmit power |
Network | NAT, NAT logging firewall, DHCP server L2, L3, or DNS based access control VLAN Pooling, RADIUS attribute VID VLAN per SSID per user |
Band Steer Load Balancer | Yes |
Tunnel | L2TP, L2oGRE, PPPoE |
Tools | Remote Packet capture Channel/noise/interference analyzer auto logging Zapf performance test tool Rogue AP detection |
Services | NTP Syslog SNMP traps DNS proxy auto-off on WAN failure |
API | RESTful management and statistics API Presence location APIs |
Cambium cnPilot™ e430W Indoor:
The cnPilot e430 Enterprise-class Indoor Wall Plate access point supporting 802.11ac Wave 2 standards-based beamforming, is perfect for hotels and resorts (Hospitality) and multi-dwelling units (MDUs)
3-Year’s Warranty
