D-Link DES-1210-28P Web Smart 24-Port Fast PoE Ethernet Switch

(0 reviews)

Sold by:
Inhouse product

Price:
৳0.00 /pc

Quantity:
(30 available)

Total Price:
Refund:
Share:

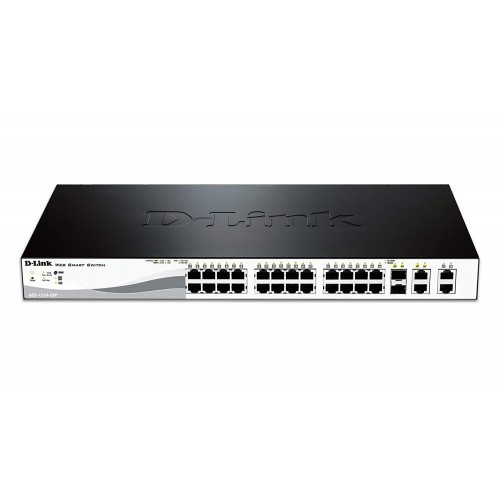

D-Link DES-1210-28P Web Smart 24-Port Fast PoE Ethernet Switch

The DES-1210-28P Web Smart PoE switch includes advanced management functions including SNMP, Web Management, SmartConsole Utility, and compact command line provides a complete and affordable solution for small and medium businesses. In addition, the DES-1210-28PP offers Power over Ethernet to power devices up to 30W per device.The D-Link Web Smart switch DES-1210-28P is equipped with 24 10/100Mbps ports, two 10/100/1000BASE-T ports, and two combo 10/100/1000BASE-T/SFP ports, integrates advanced management and security functions to provide performance and scalability. While easy to use, the DES-1210-28P provides a complete and affordable solution for small and medium businesses. Management options for the switch include SNMP, Web Management, SmartConsole Utility, and compact Command Lines. The DES-1210-28P also supports ACL filtering and the D-Link Safeguard Engine™. Furthermore, the DES-1210-28P uses Auto Voice VLAN, ensuring higher priority for voice traffic. Both models come with an innovative fanless design in 19� metal cases.

Seamless Integration

The Web Smart switch DES-1210-28P is designed to provide SMB users complete control over the network. With Ethernet and Gigabit copper ports capable of connecting to existing Cat.5 twisted-pair cables, this switch eliminates the need for a complex reconfiguration process. The DES-1210-28P allows for a flexible connection to a backbone or servers. Additionally, all ports support auto-negotiation of MDI/MDI-X crossover, or configurable auto MDI, and therefore do away with crossover cables or uplink ports. This brings inexpensive and easy connectivity to your desktop. In addition, the DES-1210-28P supports a power budget of up to 193W supporting both 802.3at PoE devices up to 30W and 802.3af devices up to 15.4W.

Extensive Layer 2 Features

Equipped with a complete lineup of L2 features, this switch includes IGMP Snooping, Port Mirroring, Spanning Tree and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. Cable Diagnostics are designed for network administrators to quickly examine the quality of the copper cables and determine the type of cable error.

QoS, Bandwidth Control

The switch is perfect for deployment in a VoIP environment, as it supports Auto Voice VLAN and Differentiated Services Code Point (DSCP) QoS for VoIP application. Auto Voice VLAN will automatically place voice traffic from an IP phone to an assigned VLAN and by doing so enhance the VoIP service.With a higher priority and individual VLAN, this feature guarantees the quality and security of VoIP traffic. DSCP marks parts of an IP packet, enabling different levels of service to be assigned for network traffic. With Bandwidth Control, the network administrator can reserve bandwidth for important functions that require a larger bandwidth or might have high priority.

Secure Your Network

The innovative D-Link Safeguard Engine function protects the switch against traffic flooding caused by virus attacks. The DES-1210-28P switch supports 802.1X port-based authentication, allowing the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network by allowing an administrator to restrict the access of a network through a variety of means including MAC address, IP, UDP/TCP, and even VLAN ID.

Versatile Management

The new generation of Web Smart Switch provides growing businesses simple and easy management of their network using an intuitive SmartConsole Utility or web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole Utility easily allows customers to discover multiple D-Link Web Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC and it provides an easy initial setting of the Smart Switches. Switches with the same L2 network segment that are connected to the user’s local PC are displayed on screen for instant access. This allows extensive switch configuration settings and basic configuration of discovered devices such as password changes and firmware upgrades.The DES-1210-28P also supports D-View 6.0 and Command Line Interface (CLI) through Telnet. D-View 6.0 is a Network Management System that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security in a consistent way. D-View 6.0 provides a useful set of tools for network administrators who want to effectively manage device configurations, fault tolerance, performance, and security. CLI management through Telnet makes the adjustment of basic settings such as password changes or firmware and configuration file uploads possible.

What is the price of D-Link DES-1210-28P 24-Port Ethernet Switch in Bangladesh?

The latest price of D-Link DES-1210-28P 24-Port Ethernet Switch in Bangladesh is 16,750৳. You can buy the D-Link DES-1210-28P 24-Port Ethernet Switch at best price from our website or visit any of our showrooms.

HARDWARE FEATURES
Dimensions (L x W x H )440mm x 250 mm x 44mm
Power SupplyMaximum Power Consumption : PoE on <br>263.9 W/100 V<br> 247.4 W/240 V <br>PoE off<br> 30.6 W/100 V <br>28.1 W/240 V
Standby Power Consumption : 19.6 W/100V / 16.6 W/240V
Weight3.75 kg
Main Feature
Type100BASE-TX Fast Ethernet
Port24
Network StandardIEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 (twisted-pair copper)
Auto-negotiation
IEEE 802.3x Flow Control
Data Transmission Rate10/100Mbps
MAC Address Table8K
Manufacture Warranty
Warranty01 Year Warranty

01 Year Warranty

There have been no reviews for this product yet.
