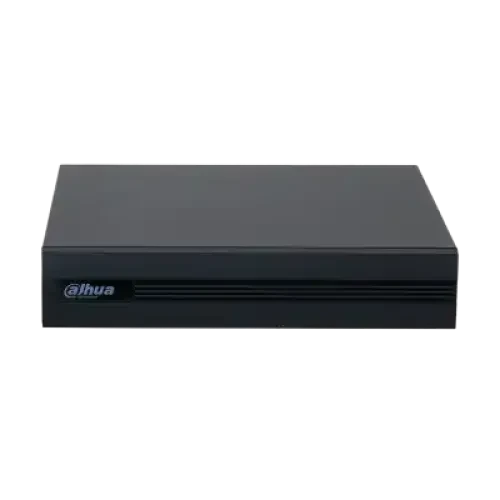

DAHUA DH-XVR1B04-I 4-Channel Digital Video Recorder
The DAHUA DH-XVR1B04-I Digital Video Recorder features H.265+/H.265 dual-stream video compression. This DVR supports Full channel AI-Coding. It's easy to preserve all the wonders and excitement you see on TV. It is a stand-alone recorder that captures HDMI videos as you watch them, without the need for a PC. It supports HDCVI/AHD/TVI/CVBS/IP video inputs. It offers Max 5 channels of IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth. With an advanced scene-adaptive rate control algorithm, Dahua smart codec technology realizes higher encoding efficiency than H.265 and H.264, provides high-quality video and reduces the cost of storage and transmission. The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. The DAHUA DH-XVR1B04-I comes with a 1-year warranty.
The DAHUA DH-XVR1B04-I Digital Video Recorder features H.265+/H.265 dual-stream video compression. This DVR supports Full channel AI-Coding. It's easy to preserve all the wonders and excitement you see on TV. It is a stand-alone recorder that captures HDMI videos as you watch them, without the need for a PC. It supports HDCVI/AHD/TVI/CVBS/IP video inputs. It offers Max 5 channels of IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth. With an advanced scene-adaptive rate control algorithm, Dahua smart codec technology realizes higher encoding efficiency than H.265 and H.264, provides high-quality video and reduces the cost of storage and transmission. The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. The DAHUA DH-XVR1B04-I comes with a 1-year warranty.
What is the price of DAHUA DH-XVR1B04-I Digital Video Recorder in Bangladesh?
The latest price of DAHUA DH-XVR1B04-I Digital Video Recorder in Bangladesh is 3,350৳. You can buy the DAHUA DH-XVR1B04-I Digital Video Recorder at best price from our website or visit any of our showrooms.
The latest price of DAHUA DH-XVR1B04-I Digital Video Recorder in Bangladesh is 3,350৳. You can buy the DAHUA DH-XVR1B04-I Digital Video Recorder at best price from our website or visit any of our showrooms.
| System | ||
| Main Processor | Embedded Processor | |
| Operating System | Embedded LINUX | |
| Audio and Video | ||
| IP Camera Input | 4+1 channels, each channel up to 2MP | |
| Two-Way Talk | Reuse audio in/out, RCA | |
| Display | ||
| Interface | 1 HDMI; 1 VGA | |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| Multi-Screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 | |
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording | |
| Recording | ||
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 | |
| Resolution | 1080N; 720p; 960H; D1; CIF | |
| Record Rate | Main Stream: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps) Sub stream: CIF (1~15 fps) | |
| Bit Rate | 32 kbps–4096 kbps per channel | |
| Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop | |
| Record Interval | 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s | |
| Video Detection And Alarm | ||
| Trigger Event | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis | |
| Alarm Input | N/A | |
| Relay Output | N/A | |
| Playback And Backup | ||
| Sync Playback | 1/4 | |
| Search Mode | Time/Date; Alarm; MD and Exact Search (accurate to second) | |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Third Party Support | ||
| Third Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | |
| Network | ||
| Interface | 1 RJ-45 Port (100 Mbps) | |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) | |
| Maximum User Access | 128 users | |
| Smart Phone | iPhone; iPad; Android | |
| Interoperability | ONVIF 16.12, CGI Conformant | |
| Storage | ||
| Internal HDD | 1 SATA port, up to 6 TB capacity | |
| eSATA | N/A | |
| Auxiliary Interface | ||
| USB | 2 USB ports (USB 2.0) | |
| RS232 | N/A | |
| RS485 | N/A | |
| Power | ||
| Power Supply | DC 12 V/1.5 A | |
| Power Consumption | < 7 W | |
| Component Environment | ||
| Operational Conditions | –10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH) | |
| Storage Conditions | –20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH) | |
| Construction | ||
| Dimensions | Cooper 1U, 198 mm × 202.9 mm × 41.5 mm (7.81'' × 7.99'' × 1.63'') | |
| Net Weight | 0.57 kg (1.25 lb) | |
| Gross Weight | 1.08 kg (2.38 lb) | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |
1-year warranty.
