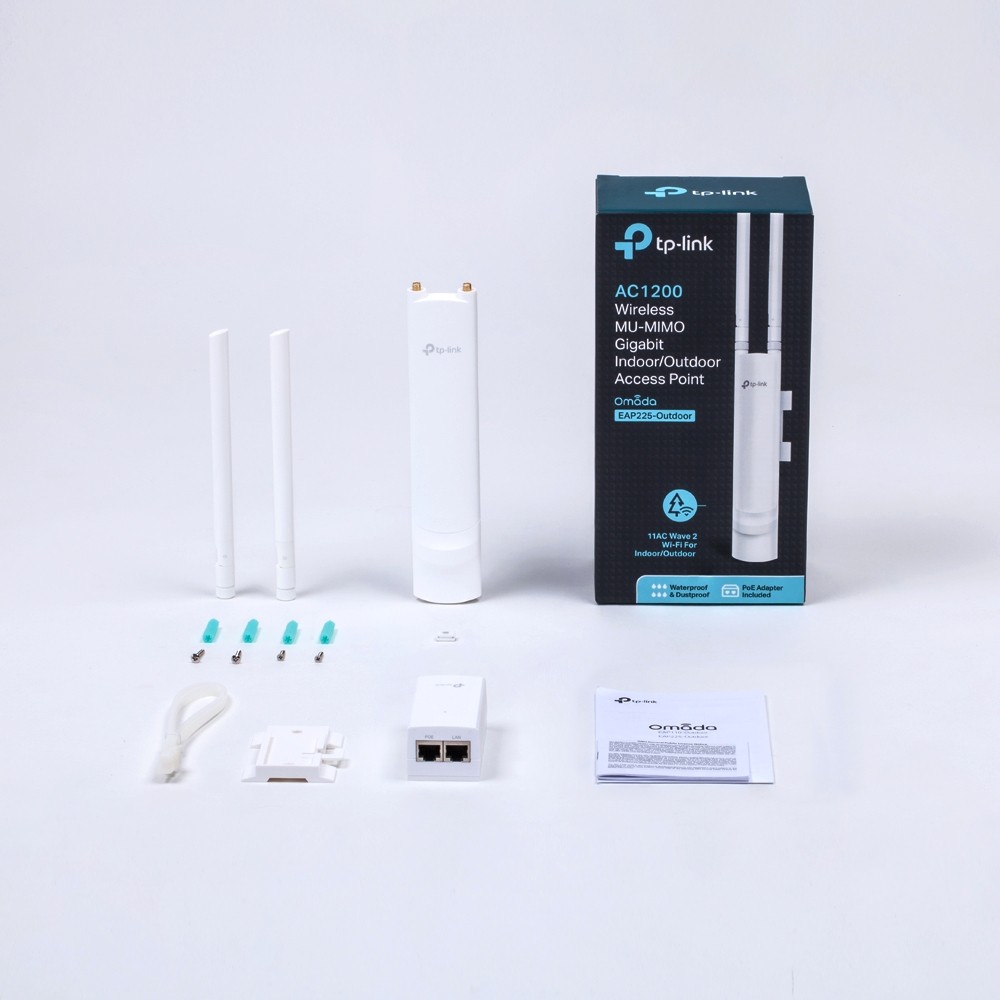

TP-Link EAP225 Outdoor Access Point:
Outdoor Access Point Overview:
Main Feature | ||
Antenna | 2× External Antennas | |
Button | Reset | |
Temperature | Operating Temperature: -30℃~70℃ (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing | |
Dimensions | 215 × 46 × 27 mm | |
Power | ||
PoE in | 802.3af PoE and 24 Passive PoE(PoE injector included) | |
Power consumption | 10.5W | |
Network | ||
Wireless Rate | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
Wireless frequency | 2.4GHz, 5GHz | |
Wireless standards | IEEE 802.11a/b/g/n/ac | |
Ethernet | 1x Gigabit Ethernet RJ-45 port | |
Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support | |
Manufacturer Warranty | ||
Warranty | 1 Year |
TP-Link EAP225 Outdoor Access Point:
Outdoor Access Point Overview:
Main Feature | ||
Antenna | 2× External Antennas | |
Button | Reset | |
Temperature | Operating Temperature: -30℃~70℃ (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing | |
Dimensions | 215 × 46 × 27 mm | |
Power | ||
PoE in | 802.3af PoE and 24 Passive PoE(PoE injector included) | |
Power consumption | 10.5W |
1 Year |
