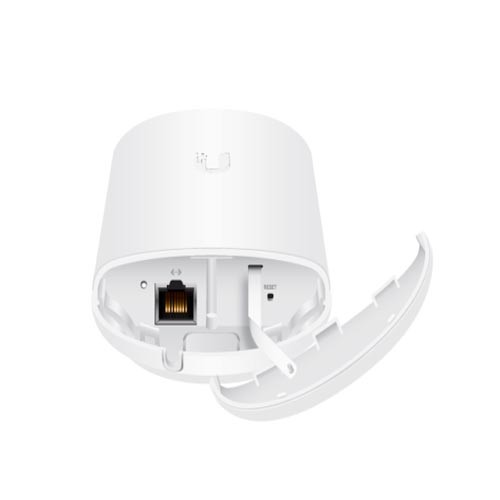

Ubiquiti airMAX NanoStation NS-5ACL-USAC Loco 5Ghz

Ubiquiti airMAX NanoStation NS-5ACL-USAC Loco 5Ghz:

The Ubiquiti airMAX NanoStation AC loco integrates airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management to create a more efficient and compact CPE. The low cost, high performance, and small form factor of the NanoStation AC loco make it extremely versatile and economical to deploy.

• Real-Time Reporting
• Spectral Analysis
• Advanced RF Analytics
• Up to 450+ Mbps Real TCP/IP Throughput
• Dedicated Wi-Fi Radio for Management
• Versatile Mounting: Suitable for indoor and outdoor installations
• Improved Surge Protection: The NanoStation AC loco utilizes the latest ESD Protection to help protect against power surges.
• Efficient Footprint: The radio and antenna are combined into a single body that takes up minimal space.
• Quick Installation: No fasteners are required for pole‑mounting

Product Specifications:

• Throughput: Up to 450+ Mbps Real TCP/IP Throughput
• Operating Frequency (MHz): 5150 – 5250, 5725 – 5850
• Management Radio (MHz): 2412 – 2462
• Power Supply: 24V, 0.5A Gigabit PoE Supply*
• Max. Power Consumption: 8.5W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Gain: 13 dBi
• Networking Interface: 10/100/1000 Mbps Ethernet Port
• Channel Bandwidths: 10/20/30/40/50/60/80 MHz
• Processor Specs: Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2
• Cross-pol Isolation: 20 dB Minimum
• Max. VSWR: 1.8:1
• Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
• Polarization: Dual Linear
• Enclosure: Outdoor UV Stabilized Plastic
• LEDs: (1) Power
• Mounting: Pole-Mount (Kit Included)
• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Operating Humidity: 5 to 95% Non-condensing

Product Includes:

• NanoStation Loco US
• Zip Tie
• Quick Start Guide
